A-Parser Integration with Redis: Advanced API

Comparison with HTTP API

A-Parser Redis API was designed to replace the oneRequest and bulkRequest methods for a more performant implementation and to support additional use cases:

the request and result server is Redis
ability to request results asynchronously or in blocking mode
ability to connect many scrapers (on the same or on different servers) to process requests through a single entry point
ability to set the number of threads for request processing and view operation logs
ability to organize timeouts for operations
automatic Expire of unclaimed results

Discussion thread on the forum

Pre-setup

Unlike the A-Parser HTTP API, to use the Redis API you must preconfigure and run a job with the API::Server::Redis scraper:

install and run the Redis server (locally or remotely)
create a preset for the API::Server::Redis scraper and specify:
- Redis Host - Redis server address, default 127.0.0.1
- Redis Port - Redis server port, default 6379
- Redis Queue Key - the name of the key for exchanging data with A-Parser, default aparser_redis_api; you can create separate queues and process them with different jobs or different copies of A-Parser
- Result Expire(TTL) - result lifetime in seconds, used for automatic tracking and deletion of unclaimed results, default 3600 seconds (1 hour)
add a job with the API::Server::Redis scraper
- as queries, you need to specify {num:1:N}, where N must match the number of threads specified in the job
- you can also enable logging, which will allow viewing the log for each request

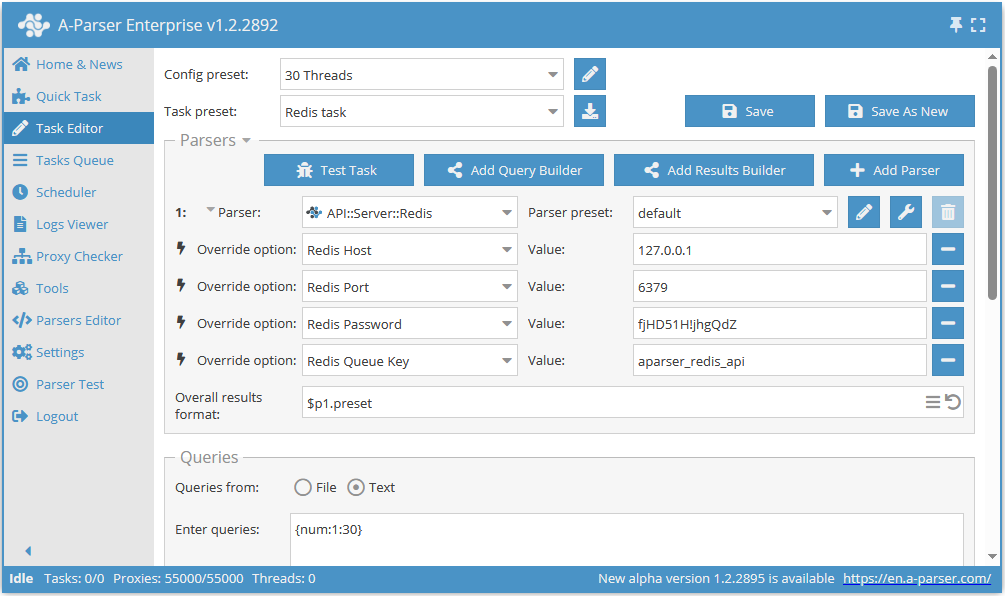

Example of configuring a job with API::Server::Redis

Running A-Parser together with Redis using docker-compose

With this startup method, as the Redis server address (Redis Host) you can specify the service name instead of an IP address; in the examples below, this is redis

If A-Parser has not been run via docker-compose before

Download and unpack the distribution (you need to get a one-time link in the Members Area as described here):

curl -O https://a-parser.com/members/onetime/ce42f308eaa577b5/aparser.tar.gz
tar zxf aparser.tar.gz
rm -f aparser.tar.gz

Create a file docker-compose.yml and place the following content into it:

Basic option without a password and without opening the port, Redis will be available only inside the Docker network

version: '3'

services:
  a-parser:
    image: aparser/runtime:latest
    command: ./aparser
    restart: always
    volumes:
      - ./aparser:/app
    ports:
      - 9091:9091

  redis:
    image: redis:latest
    restart: always

Option with a password and with the port opened, Redis will be accessible from outside, so using a password is strongly recommended

version: '3'

services:
  a-parser:
    image: aparser/runtime:latest
    command: ./aparser
    restart: always
    volumes:
      - ./aparser:/app
    ports:
      - 9091:9091

  redis:
    image: redis:latest
    restart: always
    command: redis-server --requirepass YOUR_REDIS_PASSWORD
    ports:
      - 6379:6379

Instead of HERE_IS_PASSWORD_FOR_REDIS come up with and specify the password that will be used to authenticate to Redis.

Start the containers:

docker compose up -d

If A-Parser has already been run via docker-compose before

Edit the docker-compose.yml file, adding the following content to the end:
- Basic option without a password and without opening the port, Redis will be available only inside the Docker network
```
  redis:
    image: redis:latest
    restart: always
```
- Option with a password and with the port opened, Redis will be accessible from outside, so using a password is strongly recommended
```
  redis:
    image: redis:latest
    restart: always
    command: redis-server --requirepass YOUR_REDIS_PASSWORD
    ports:
      - 6379:6379
```
Instead of HERE_IS_PASSWORD_FOR_REDIS come up with and specify the password that will be used to authenticate to Redis.
Start the containers:

docker compose up -d

note

If A-Parser was already running and its configuration has not changed, it will not be restarted; Docker will simply add and start Redis.

Executing requests

Redis API operation is based on Redis Lists (lists); list operations allow you to enqueue an unlimited number of requests (limited by RAM), and also retrieve results in blocking mode with timeout (blpop) or in asynchronous mode (lpop).

all settings, except useproxy, proxyChecker and proxybannedcleanup, are taken from the preset of the invoked scraper + overrideOpts
the useproxy, proxyChecker and proxybannedcleanup settings are taken from the preset of API::Server::Redis + overrideOpts

A request is added to Redis with the lpush command; each request consists of an array [queryId, parser, preset, query, overrideOpts, apiOpts] serialized using JSON:

parser, preset, query correspond to the same fields for the API request oneRequest
queryId - is generated with the request; we recommend using a sequential ID from your database or a good random; you can retrieve the result by this ID
overrideOpts - overriding settings for the parser preset
apiOpts - additional API processing parameters

note

When queries are made via Redis, the result formatting stage is skipped, since the entire result is transmitted as JSON for further programmatic processing.

redis-cli

Example of executing requests; for testing you can use redis-cli:

127.0.0.1:6379> lpush aparser_redis_api '["some_unique_id", "Net::HTTP", "default", "https://ya.ru"]'
(integer) 1
127.0.0.1:6379> blpop aparser_redis_api:some_unique_id 0
1) "aparser_redis_api:some_unique_id"
2) "{\"data\":\"<!DOCTYPE html><html.....

Various use cases

Asynchronous check for the result

lpop aparser_redis_api:some_unique_id

Will return the result if it has already been processed or nil if the request is still being processed

Blocking result retrieval

blpop aparser_redis_api:some_unique_id 0

This request will be blocked until the result is available; you can also specify a maximum timeout for receiving the result, after which the command will return nil

Saving results to a single queue

By default A-Parser saves the result for each request under its unique key aparser_redis_api:query_id, which allows multithreaded processing by sending requests and receiving results separately for each thread

In some cases you need to process results in a single thread as they arrive; in this case it is more convenient to save results into a single results queue (the key must be different from the requests key)

To do this, specify the key output_queue for apiOpts:

lpush aparser_redis_api '["some_unique_id", "Net::HTTP", "default", "https://ya.ru", {}, {"output_queue": "aparser_results"}]'

Retrieving a result from the shared queue:

127.0.0.1:6379> blpop aparser_results 0
1) "aparser_results"
2) "{\"queryId\":\"some_unique_id\",\"results\":{\"data\":\"<!DOCTYPE html><html class=...

Implementation example (SpySERP use case)

Suppose we create a SaaS service that evaluates domain parameters; for simplicity we will check the domain registration date

Our service consists of 2 pages:

/index.php - landing page containing the domain input form
/results.php?domain=google.com - page with the service results

To improve user experience we want our service pages to load instantly, while the data wait looks natural and shows a loader

When requesting results.php we first send a request to the A-Parser Redis API, forming a unique request_id:

lpush aparser_redis_api '["request-1", "Net::Whois", "default", "google.com", {}, {}]'

After that we can render the page for the user and display a loader in the data area; because there are no delays the server response will be limited only by the Redis connection speed (usually around 10ms)

A-Parser will start processing the request before the user's browser receives the first content; after the browser loads the required resources and scripts, we can display the result by sending an AJAX request to get the data:

/get-results.php?request_id=request-1

The get-results.php script performs a blocking Redis request with a 15-second timeout:

blpop aparser_redis_api:request-1 15

And returns the response as soon as it is received from A-Parser; if we get a null result due to timeout, we can display a data retrieval error to the user

Thus, by sending the request to A-Parser when the page is first opened (/results.php), we reduce the user's waiting time for data (/get-results.php) by the time the user's browser spends waiting for content, loading scripts, and executing the AJAX request
